Description:

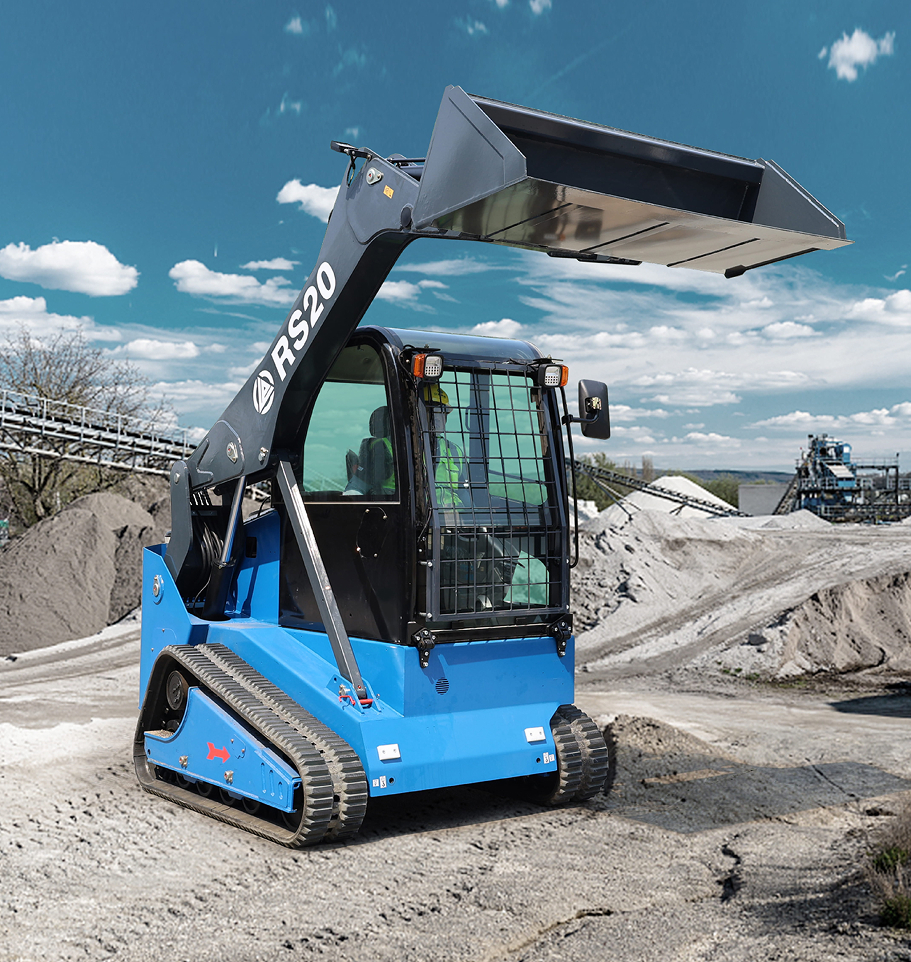

The RIPPA RS20 Skid Steer Loader is a heavy-duty compact track loader powered by the reliable Kubota V2607 diesel engine (47.6 HP (35.5 kW)).
Designed for demanding construction, mining, and material-handling tasks, it combines strong power, high efficiency, and smooth control.
Its four-pump hydraulic system and quick-coupler interface make it adaptable for multiple attachments, ensuring superior productivity and versatility.

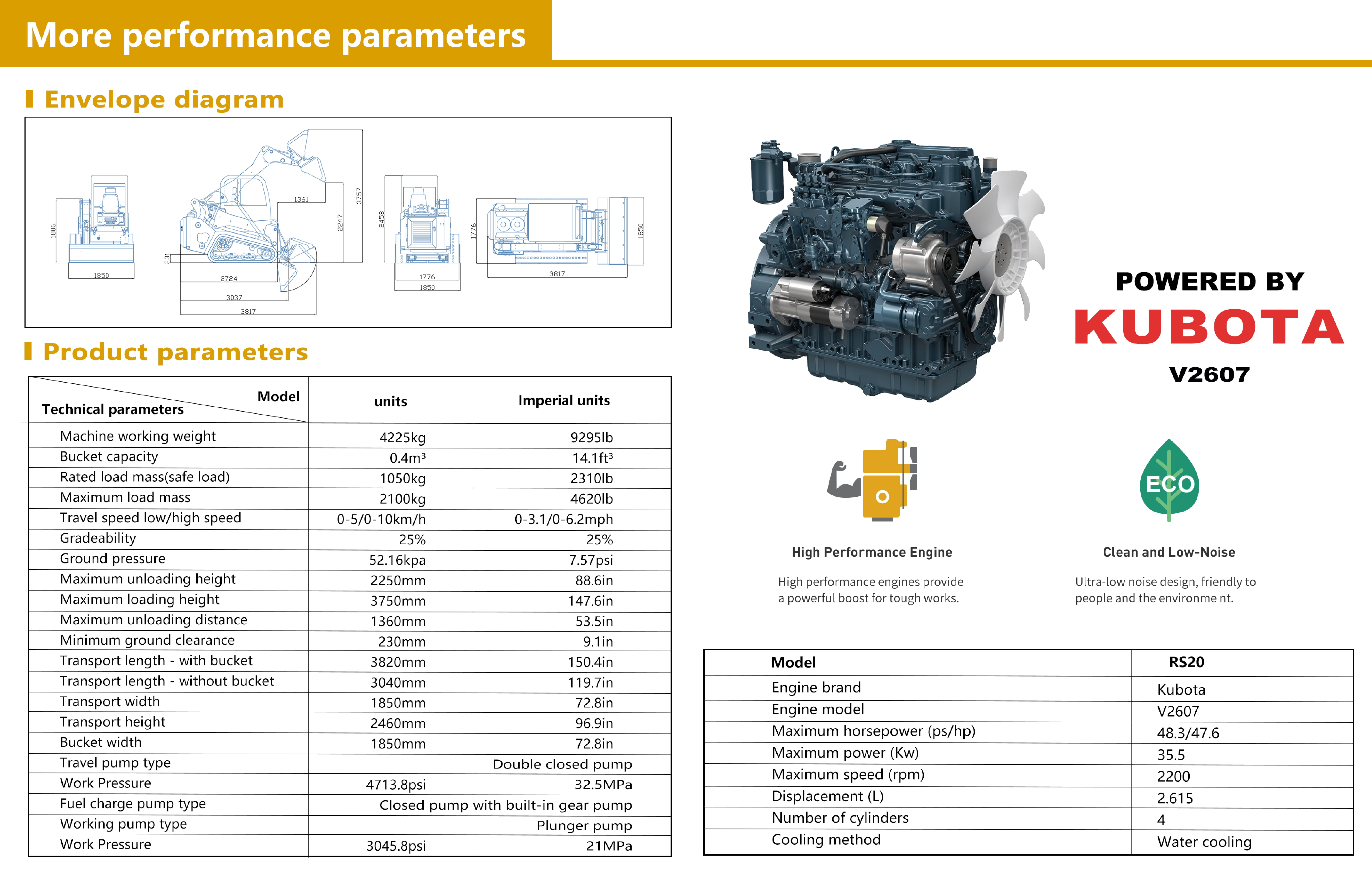

Specifications:
| Category | Details |
|---|---|
| Model | RS20 |
| Type | Track Skid Steer Loader (Diesel) |
| Engine | Kubota V2607 — 4 cyl / water-cooled |
| Rated Power | 47.6 HP (35.5 kW) @ 2200 rpm |
| Fuel | Diesel |
| Operating Weight | 9,295 lb (4225 kg) |
| Bucket Capacity | 14.1 ft³ (0.4 m³) |
| Rated Load (Safe) | 2,310 lb (1050 kg) |
| Maximum Load | 4,620 lb (2100 kg) |
| Travel Speed (Low/High) | 0–3.1 / 0–6.2 mph (0–5 / 0–10 km/h) |
| Gradeability | 25% |
| Ground Pressure | 7.6 psi (52.16 kPa) |
| Max Unloading Height | 88.6 in (2250 mm) |
| Max Loading Height | 147.6 in (3750 mm) |
| Unloading Distance | 53.5 in (1360 mm) |
| Min Ground Clearance | 9.1 in (230 mm) |
| Transport Length (w/ bucket) | 150.4 in (3820 mm) |
| Transport Length (no bucket) | 119.7 in (3040 mm) |
| Transport Width | 72.8 in (1850 mm) |
| Transport Height | 96.9 in (2460 mm) |
| Bucket Width | 72.8 in (1850 mm) |
| Hydraulic System | Four-pump system (28.5 + 28.5 + 9.4 + 28.5 gpm) (108 + 108 + 35.7 + 108 L/min) |
| Main Pump Type | Double closed plunger pump |
| Work Pressure | 4713.8 psi (32.5 MPa) |
| Auxiliary Hydraulics | 2 main lines + 1 return line |
Applications:
- Construction & Demolition: Heavy earthmoving, loading, and grading tasks.
- Mining & Quarries: Material transport and stockpile handling.
- Industrial & Municipal: Road maintenance, snow removal, and utility work.
- Landscaping & Agriculture: Soil preparation and material distribution.

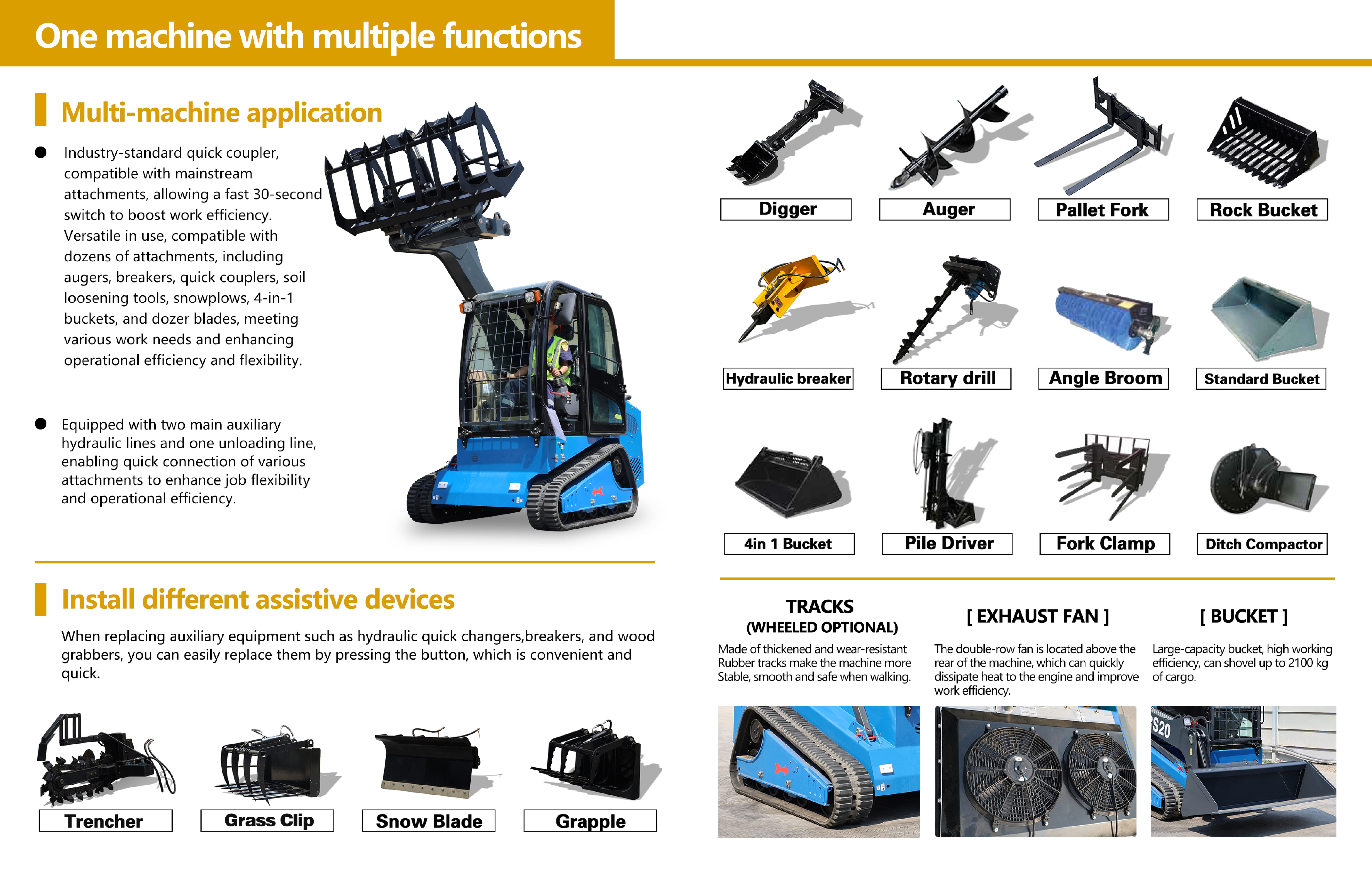

- Attachments: Breaker, auger, pallet fork, grapple, angle broom, pile driver, 4-in-1 bucket, ditch compactor, etc.
